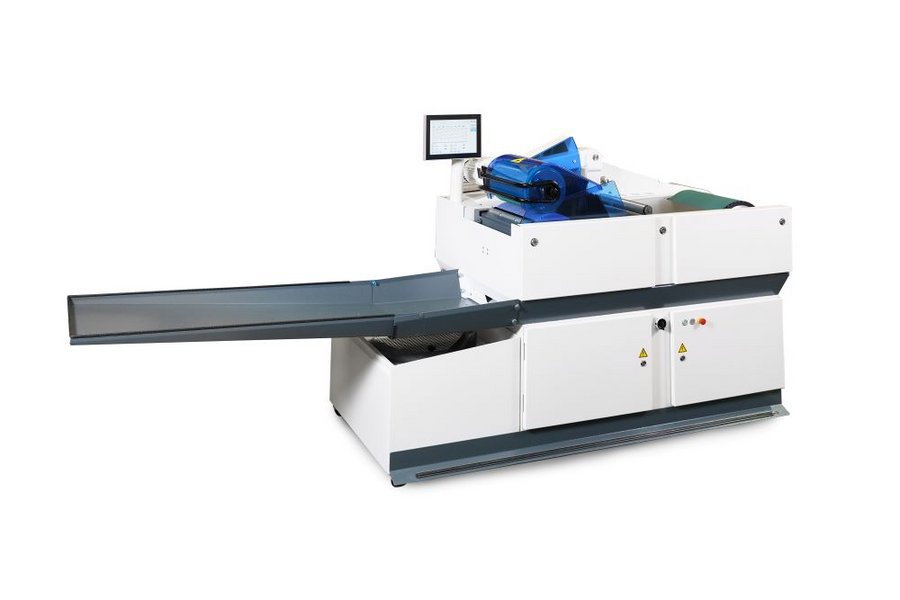

Space-saving base grinding machine for racing
The CRYSTAL INLINE II RACE is a state-of-the-art, professional stone grinding machine that has been specially designed for racing. As a skinther development of the tried-and-tested CRYSTAL INLINE II BASIC, it impresses with its outstanding precision and a wide range of structuring options.
The RACE update gives you access to an integrated structure editor (Vario-RACE), which offers the user almost limitless possibilities for individual structuring. The additional centering unit ensures a perfect and extremely precise sanding pattern for centrally centered structures. With the CRYSTAL INLINE II RACE, you are optimally equipped to prepare your snow sports equipment to a professional standard and thus achieve the best performance on the slopes.
The integrated 12-inch touch panel with intuitive user guidance supports you in your daily work. Thanks to the pivoting feed of the inline, both stone sanding and belt sanding can be carried out with feed. In addition, the tool-free and quick belt change allows you to flexibly carry out all service operations such as base grinding, edge tuning, waxing, polishing and deburring.
The stone and feed speed can be infinitely adjusted to suit your individual requirements. The pneumatically adjustable contact pressure enables fine adjustment of the optimum grinding pressure.
Infinitely variable dressing speed and pneumatically controlled depth adjustment of the dressing tool are skinther features that set the new Inline series apart.</p
The RACE COMBINED MACHINE
The tool-free and fast belt change of the CRYSTAL INLINE II RACE enables flexible execution of all service operations such as pad grinding, edge tuning, waxing, polishing and deburring.
<p
Advantages
- Installation Plug & Play
- Remote maintenance
- Pneumatic dresser infeed
- Tool-free belt change
- High-quality 12`` touch panel
- Structure editor with Vario Race for limitless
- Possibilities for individual structuring
- 2 structures on one stone
- Ski and board centering for a perfect
- centered grinding pattern
- Plexi stone cleaning
- Infinitely variable stone speed
- Infinitely variable adjustable feed speed
- Pneumatically adjustable contact pressure
- High-precision stone shaft bearing with ETP
- Simple and clear operation
Technical data
Machine
| Power: | 7 kW |
| Voltage: | 3 x 400 Volt / 50 Hz or 3 x 220 V / 50/60 Hz |
| Fuse: | 3 x 16 A |
| Tank capacity: | 90 liters |
| Steel speed: | 200 - 2.000 rpm |
| Belt speed: | 200 - 2.000 rpm |
| Cutting speed: | 1 - 34 m/s |
| Feed rate: | 3 - 35 m/min |
| Compressed air: | min. 6 bar, 80 l/min |
| Total weight: | 610 kg |
