Automatic service station of the latest generation

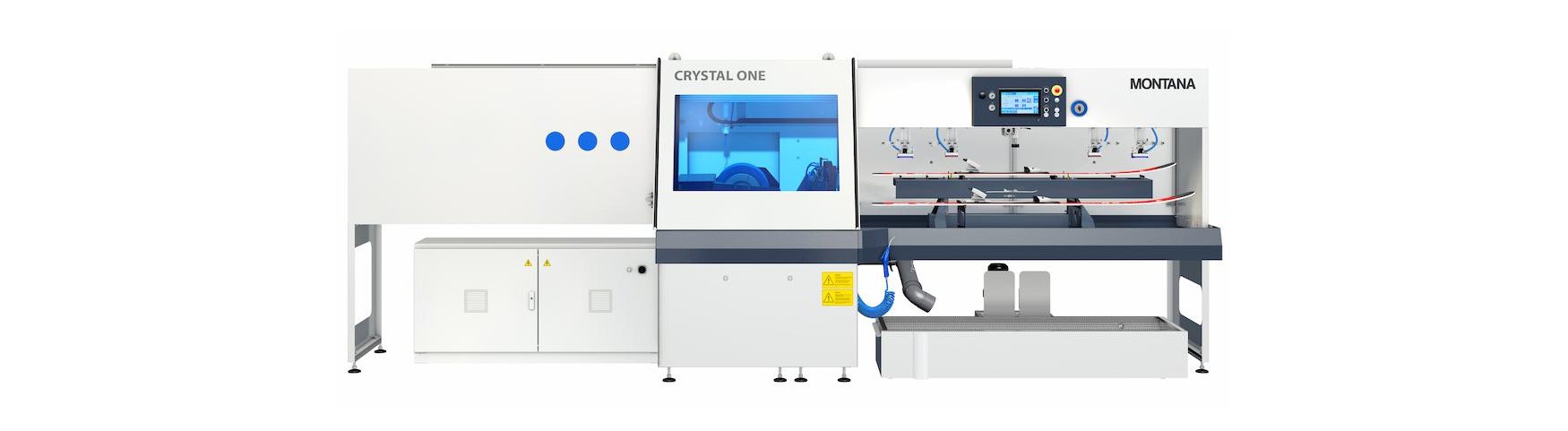

The new CRYSTAL ONE 2.0 impresses with first-class results and a space-saving design. Impressive technology in the smallest of spaces. Ski service robots from MONTANA are exceptionally robust, high-quality and durable. With VARIO structures, stone grinding takes place on a 160 mm wide stone. The GRIPtech system for the side edge ensures a leap in quality in ski service: this produces a precise, sharp and durable edge in RACE EDGE quality for ski widths of all kinds. The High Tech Tuning (HTT) enables a polished edge with a minimal tuning angle for the best gliding and turning properties. A combined unit for stone grinding and tuning automates these work steps and thus reduces the amount of labor required. This makes the CRYSTAL ONE 2.0 an extremely economically attractive option.
<pAdvantages
- PowerVac vacuum system for suctioning all ski surfaces
- Automatic stone grinding for 1 ski with pressure curve
- 2 dressers (1 x electric for stone, 1 x pneumatic for HTT)
- Double-sided edge grinding with GRIPtech system
- Surface-side high-tech-Tuning (HTT) of the edges
- Radial tuning
- Compact design
- Ready for "Montana Digital World"
- High-quality 12`` touch panel
Technical data
Machine
| Power: | max. 7 kW |
| Voltage: | 3 x 400 Volt / 50/60 Hz, special voltage via transformer |
| Fuse: | 3 x 16 A |
| Tank capacity: | 250 l |
| Stone width: | 160 mm |
| Steel speed: | 300 - 1.900 rpm |
| Cutting speed: | 6 - 32 m/s |
| Feed rate: | 5 - 30 m/min |
| Compressed air: | min. 6 bar, 600 l/min |
| Total weight without emulsion: | 1,950 kg |
Machine dimensions
| Length: | 5,324 mm |
| Width: | 1,428 mm |
| Height: | 1,804 mm |
